BioStar GeForce 9500GT not detected by Mint or BIOS

Post by primuspaul » Thu Mar 08, 2018 1:35 am

I bought a Dell Optiplex 790 and plugged a GPU into it. Computer boots up fine and I can see the card (which has no external power plugs that I saw, just the PCI) fan is on, but neither the BIOS nor a Mint OS (running from a flash drive) can detect it. Could it be that the PSU is not powerful enough? I would think insufficient PSU power would just shut the computer down.

Appears it's only getting detected when in the black PCI slot, NOT the blue PCI slot. Anyone know the reason?
Last edited by primuspaul on Thu Mar 08, 2018 2:15 am, edited 1 time in total.

User avatar
catweazel
Level 15
Level 15
Posts: 5917
Joined: Fri Oct 12, 2012 9:44 pm
Location: Australian Antarctic Territory

Re: BioStar GeForce 9500GT not detected by Mint or BIOS

Post by catweazel » Thu Mar 08, 2018 2:02 am

primuspaul wrote:
Thu Mar 08, 2018 1:35 am
I bought a Dell Optiplex 790 and plugged a GPU into it. Computer boots up fine and I can see the card (which has no external power plugs that I saw, just the PCI) fan is on, but neither the BIOS nor a Mint OS (running from a flash drive) can detect it. Could it be that the PSU is not powerful enough? I would think insufficient PSU power would just shut the computer down.

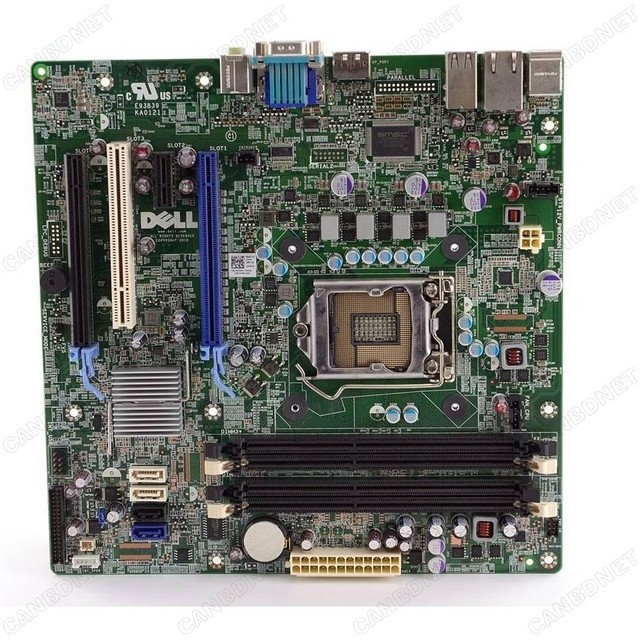

What slot have you got it plugged into? See this image:


What exactly do you mean when you say the BIOS doesn't detect it?

Please post the output of this terminal command:

Code: Select all

inxi -Fxz
Enclose the results in code markers, which you can select from the mini toolbar above the textbox where you type your reply.
A new scientific truth does not triumph by convincing its opponents and making them see the light, but rather because its opponents eventually die, and a new generation grows up that is familiar with it. - Max Planck

primuspaul
Level 1
Level 1
Posts: 30
Joined: Sat Jun 04, 2016 9:52 pm

Re: BioStar GeForce 9500GT not detected by Mint or BIOS

Post by primuspaul » Thu Mar 08, 2018 2:17 am

If I plug it into the blue slot, all 4 PCI slots in BIOS show EMPTY. If I plug it into the black slot, I see it appear in the BIOS.

I tried the command earlier. It was only posting the integrated card info. What I'm concerned about is the fact that only the black slot shows up in BIOS. Nothing shows up when I plug it into the blue slot.

User avatar
catweazel
Level 15
Level 15
Posts: 5917
Joined: Fri Oct 12, 2012 9:44 pm
Location: Australian Antarctic Territory

Re: BioStar GeForce 9500GT not detected by Mint or BIOS

Post by catweazel » Thu Mar 08, 2018 2:20 am

primuspaul wrote:
Thu Mar 08, 2018 2:17 am
If I plug it into the blue slot, all 4 PCI slots in BIOS show EMPTY. If I plug it into the black slot, I see it appear in the BIOS.

I tried the command earlier. It was only posting the integrated card info. What I'm concerned about is the fact that only the black slot shows up in BIOS. Nothing shows up when I plug it into the blue slot.
<star trek voice on>
Something is dead, Jim!
<star trek voice off>

...Probably the first PCI slot has had it. The only way to check it is to try another video card that is known to be good.
A new scientific truth does not triumph by convincing its opponents and making them see the light, but rather because its opponents eventually die, and a new generation grows up that is familiar with it. - Max Planck

primuspaul
Level 1
Level 1
Posts: 30
Joined: Sat Jun 04, 2016 9:52 pm

Re: BioStar GeForce 9500GT not detected by Mint or BIOS

Post by primuspaul » Sat Mar 10, 2018 6:50 pm

Can I just use the black PCIe slot and ignore the blue one?
